Description

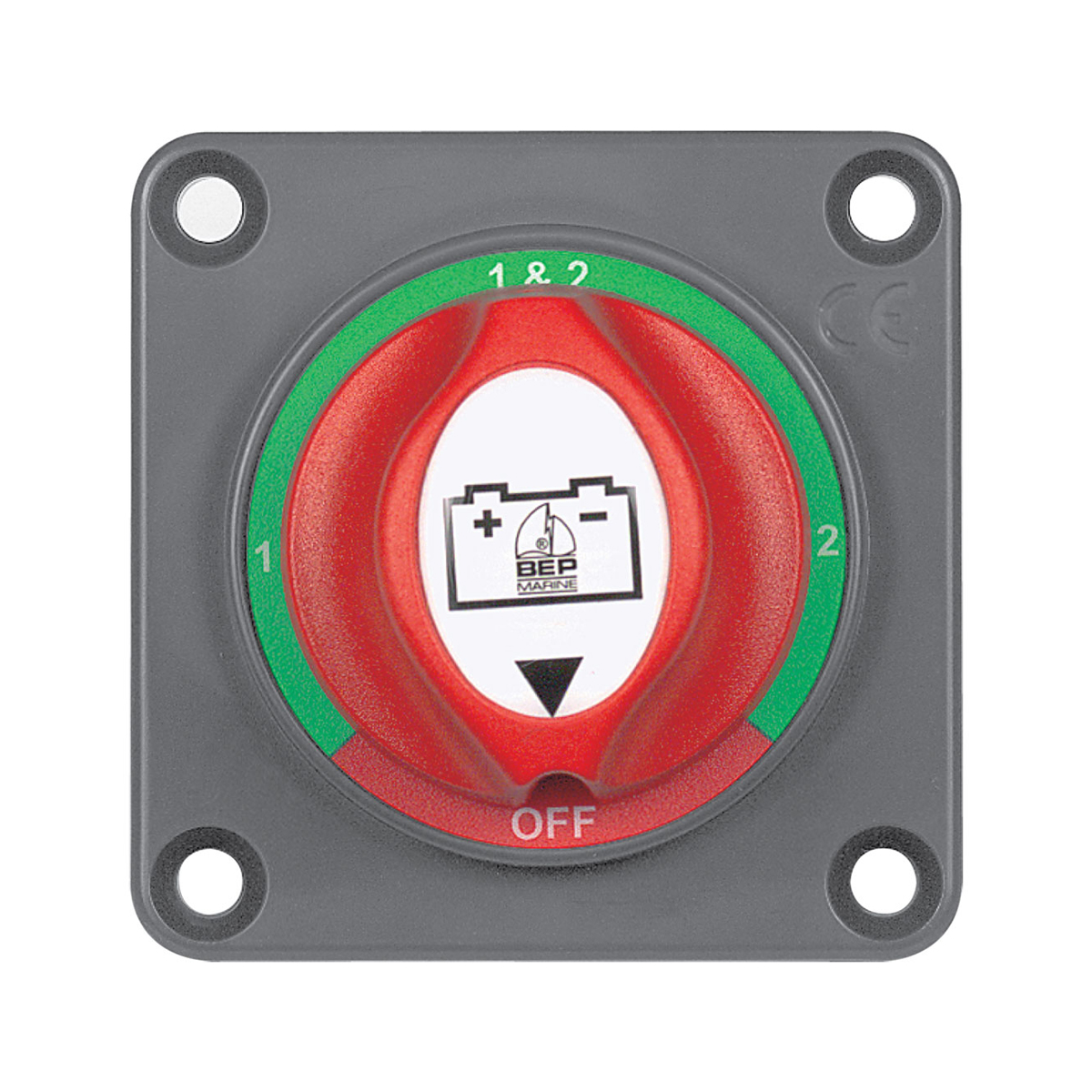

The 701-S is the smallest selector switch on the market. This battery switch offers a simple and economical way of separating two batteries. Four position rotating switch provides off, Battery 1, Both and Battery 2 alternatives. Removable rear cover insulates the rear terminals against any short circuits. Removable side plates on four sides provide ACcess for heavy duty battery cables. Surface mount or recess mount in a 52mm hole. Mount holes 5mm roundhead. The 7015-PM is designed specifically for panel mounting with the option of full recess or shallow intrusion. This flush mounting version accepts 5mm countersunk screws.
Features:
- Panel Mount
- Moulded in high temperature, fibre-reinforced plastics
- Continuous rating: 200 amps DC
- Intermittent rating: 300 amps DC
- Cranking rating: 1000 amps DC for 10 seconds
- Voltage rating: 48 volts DC maximum
- Terminal stud size: 3 x 8mm
Please note this switch will not protect electronics from harmful engine starting spikes.
